Basic unit for standard application
multi range motor - idea for on site use , also with generator pressure ratings up to 1500bar

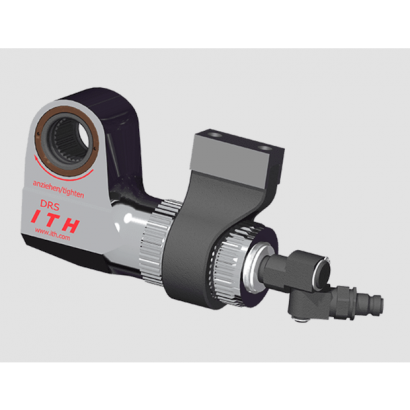

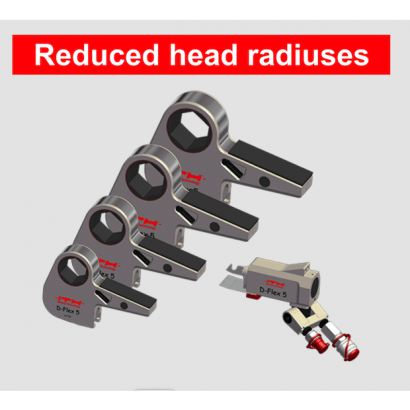

High-speed system for
torques up to 40,000 Nm


Dual-hose system, designed for maximum oil flowrates
Compatible to all ITH pumps of the DAX series


Universal nut tool


Several inserts applicable for a flexible use
For both service and production assemblies


Large reaction area


The asymmetrical support can be flipped in both directions and offers 360° rotation
Integrated push-button lock secures support quickly and easily on the splined housing

No electric power supplies required
Pneumatic motor can be powered by standard air compressors;
it can operate in areas where no electrical power is available.
Special version suitable for jobs in explosion-risk areas:
On demand the ITH PDS can be covered with a coating on the gearbox
and reaction arm - ideal for applications in the oil and gas industry.
The required torque
is set via the compressed air precision control valve at idling according to the tabular data.
The change gear (high and low gear) enables a higher range of rotational speed (optional)
and faster work.
Independent rotation between handle and gearbox
ensures steady and optimal positioning of the ITH PDS. Various accessories
like extensions, sockets, and special reaction arms are available.


Class-leading power-to-weight ratio
for battery torque wrenches up to 6,000 Nm (4,425 ft*lbs)
Brushless electronic motor
Wear-free, higher motor life-time.
Safety turning knuckle
The lockable safety turning knuckle enables the gearbox unit to be positioned independently from the drive which means the ADS can be positioned quickly and easily. During the bolting process the user’s wrist gets protected from the occurring reaction forces, which promote an ergonomic design.
 Automatic Shut-off and automatic free-run
After reaching the target torque value the ITH battery nut runner type ADS turns off automatically. When target torque is reached the tool runs back a little which avoids that socket or support may get stuck on the bolt connection.
High reproducability and precision of ± 4%
Flexible and easy to use
The ADS is ideal to use for service jobs on bolted joints where space is limited or where power supplies are not easy accessible, for example offshore applications on windturbines or others.
Expandable application options
by wide-range ITH Nut Runner accessories like torque extensions, side drives or customized supports

Comprehensive control electronic:
The EDS maintains continuous control of the tightening process and automatically adjusts the rotational speed according to the application.
Automatic free-run:
Once the previously set torque value has been reached the EDS automatically initiates “free-run”, relieving torsional binding at the reaction point for easy and safe removal of the tool after each bolting process.
Suitable for on-site construction:
The powerful motor is made to withstand the drastic voltage fluctuations common with using on-site generator power supplies.
Optimal for international machine outfits:
Automatic detection and adjustment to 50 Hz or 60 Hz power supplies.
2 gear stages:
For changing between low and high gear.
Precision:
High degree of reproducibility of thetorque values up to ± 3 %.
Independent rotation between handle and gearbox
ensures steady and optimal positioning of the ITH EDS



Optional:


Rotation-angle controlled tightening
Digital, customized documentation system
Comprehensive range of accessories




Special reaction arms, extensions, and side-drives, mobile test and calibration with our testing devices.

Compatibility


For powering hydraulic torque wrenches with single-hose and dual-hose systems of all brands up to 850 bar (12.330 Psi)
For powering general-purpose hydraulic jacks of all brands up to 850 bar (12.330 Psi)


Vertical Design


The vertical design gives the new hydraulic pump - ITH Hydro-DAX V-series their name because it leads to the best weight-to-power ratio in the market
Increased usable oil volume for faster pressure build-up
Compact and light weight

Advantages of the Hydro-MAX series


One part and wear-free rotor eccentric shaft
Fast pressure build-up with the Hydro-Booster technology
NIOX surface coating of all steel parts (suitable for offshore usage such as wind turbines, cranes, ships, and other marine applications)
Pump head made out of special tempering steel: especially long lifetime of the pressurized parts
Safe position of the two high pressure couplings: Directed away from the user
Simple one man operation, fast process with the remote control



Performance data overview of the Hydro-MAX series


Available pressure ratings (Max. working pressure): 1250 bar, 1500 bar, and 2500 bar
Voltage range 90 V - 480 V for 50 Hz and / or 60Hz (multi range motor)



Pressure build up: Options


Remote control standard (10m cord)
Option: Digital remote displaying pressures (10m cord)
Option: APC Automatic Pressure Control




Alternative pressure build up: Setup of the manual shut-off valve at the Hydraulic pump.

Advantages of the pneumatic pump


Ideal for on-site use: Fast handling with light weight and small dimensions for working pressures up to 3000 bar.
No electric power supply required: Any major air pressure system can be used.



Pressure build up: Various designs


Hydraulic pressure adjusting valve: This provides for smooth adjustment of the max hydraulic pressure and enables a faster pressure build up since it doesn't limit the air flow into the booster.
Without pressure adjusting valve: The hydraulic pressure output is controlled directly at the service unit (inlet pressure, primary side of the pressure cycle).



With pneumatic remote control: ITH Aero-MAX 179


Comfortable control of the hydraulic output pressure with a pneumatic remote
5-m hose for flexible and fast working. Pure pneumatic, no electric power supply required
Shut-off function for the hydraulic pressure open / closed at the remote control.

Advantages of the Eco-MAX series


Designed for standard applications, medium number of cycles
Suitable for on-site use: Weight optimized and compact with modular design
One part and wear-free rotor-eccentric shaft
Eco-MAX 18: Two hydraulic couplings provide the ability to use a number of bolt tensioning cylinders for the simultaneously pre tensioning of the bolt connections (ITH Multi-Tensioning)
Easy one-man operation, fast working process with the remote control



Performance data overview of the Eco-MAX series


Available pressure ratings (Max. working pressure): 1250 bar and 1500 bar
Voltage range 90 V - 480 V for 50 Hz and / or 60Hz (multi range motor)



Pressure build up: Options for Eco-MAX 18


Remote control standard (10m cord)
Option: Digital remote displaying pressures (10m cord)
Option: APC Automatic Pressure Control




Alternative pressure build up: Setup of the manual shut-off valve at the Hydraulic pump for Eco-MAX 17.

Advantages of the TH Micro-MAX series


Ideal for on-site use: The handling of the ITH Micro-MAX is as easy as a cable drum : It is can be used in places where the space is limited such as bolt connections on cranes and wind turbines (especially offshore).
Fast pressure build up guarantees fast assembly and service jobs.
Easy transport
NIOX-coating for all steel parts
Pump head made out of special tempering steel: especially long lifetime of the pressurized parts



Performance data overview of the Micro-MAX series


Available pressure rating (Max. working pressure): 1250 bar and 1500 bar
Frequency-independent motor: Voltages from 90 V - 110 V or 190V - 230V at 50 + 60 Hz offer the flexibility to operate worldwide.



Pressure build up Micro-MAX 70: Options


Remote control standard (10m cord)
Option: Digital remote displaying pressures (10m cord)



Micro-MAX 71 and 72: Manually setting of the hydraulic pressure with the pressure adjusting valve.
