產品介紹

FEATURES:
NIOX coating / Patented safety concept / Patentierted cycle counter / Automatic piston return / Hydraulic connection
Spring loaded turning sleeve & control notch / Optional measurement slot / Direct gear drive / Carrying strap and options / Hydraulic connection

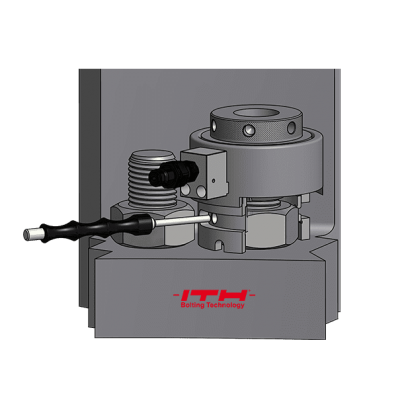

Type ES (single-stage): Short & wide design for radially open but limited vertical clearance applications

Standard scope


design for bolt quality 10.9: M16 to M150
design for bolt quality 8.8: M16 to M110


Special cylinders, customized designs for bolt qualities 5.6, 6.8 or 12.9 or further bolt qualities can be delivery on request.

Thread projection
The minimum of the thread projection of the bolt above the nut: 1,0 x d of the bolt (depending on the pre-load force; d = inner thread diameter).

Bolt Tensioning Cylinders can be used for the following fastener configurations:

Hexagon nuts


ISO 4032: Hexagon nuts (former DIN 934)
DIN 2510-5: Hexagon nuts
EN 14399-4: High strength pre tension able bolt connections for the steel constructions (former DIN 6915)
Heavy hex nuts
Hexagon nuts according to customer designs



Round nuts:


Round nuts with radial hole
Round nut with center holes
ITH Round nuts RMS /RMZ
IHF Round nut
Round nuts according to customer designs

FEATURES:
NIOX coating / Patented safety concept / Patentierted cycle counter / Automatic piston return / Exchangable change bushing
Spring loaded turning sleeve & control notch / Optional measurement slot / Direct gear drive / Carrying strap and options / Hydraulic connection.

Design

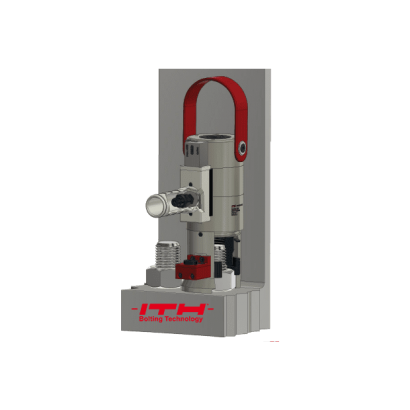

Type MS (Multi-stage): Tall & slim design for vertically open but limited radial clearance applications

Standard scope


design for bolt quality 10.9: M 16 to M 110
Please contact us for bolt qualities 5.6, 6.8, 8.8 or 12.9 or customer specific designs and dimensions.


Thread projection
The minimum required thread projection of the bolt above the nut: 1,0 x d of the bolt (depending on the preload force). If there is not enough thread projection ITH recommends the use of ITH tension nuts.

The BTC can be used for the following fastener configurations
Hexagon nuts


ISO 4032: Hexagon nuts (former DIN 934)
DIN 2510-5: Hexagon nuts
EN 14399-4: High strength pre tension able bolt connections for the steel constructions (former DIN 6915)
Heavy hex nuts
Hexagon nuts according to customer designs



Round nuts:


Round nuts with radial hole
Round nut with center holes
ITH Round nuts RMS /RMZ
IHF Round nuts

FEATURES:
NIOX coating / Patented safety concept / Exchangable change bushing
Flexibility by modular design  / Control notch / Patented cycle counter

Type SES (single-stage simple): Short & wide design for radially open but limited vertical clearance applications

Standard scope


design for bolt quality 8.8: M16 to M110
special cylinders, customized designs for bolt qualities 5.6, 6.8 or 10.9 or further bolt qualities can be delivery on request.


Bolt Tensioning Cylinders can be used for the following fastener configurations:

Hexagon nuts


ISO 4032: Hexagon nuts (former DIN 934)
DIN 2510-5: Hexagon nuts
EN 14399-4: High strength pre tension able bolt connections for the steel constructions (former DIN 6915)
Heavy hex nuts
Hexagon nuts according to customer designs



Round nuts:


Round nuts with radial hole
Round nut with center holes
ITH Round nuts RMS /RMZ
IHF Round nut
Round nuts according to customer designs
