Basic unit for standard application
multi range motor - idea for on site use , also with generator pressure ratings up to 1500bar

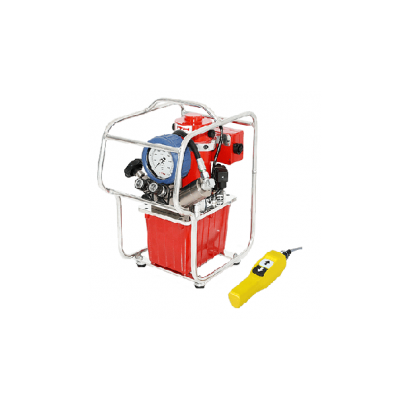

Advantages of the Hydro-MAX series


One part and wear-free rotor eccentric shaft
Fast pressure build-up with the Hydro-Booster technology
NIOX surface coating of all steel parts (suitable for offshore usage such as wind turbines, cranes, ships, and other marine applications)
Pump head made out of special tempering steel: especially long lifetime of the pressurized parts
Safe position of the two high pressure couplings: Directed away from the user
Simple one man operation, fast process with the remote control



Performance data overview of the Hydro-MAX series


Available pressure ratings (Max. working pressure): 1250 bar, 1500 bar, and 2500 bar
Voltage range 90 V - 480 V for 50 Hz and / or 60Hz (multi range motor)



Pressure build up: Options


Remote control standard (10m cord)
Option: Digital remote displaying pressures (10m cord)
Option: APC Automatic Pressure Control




Alternative pressure build up: Setup of the manual shut-off valve at the Hydraulic pump.

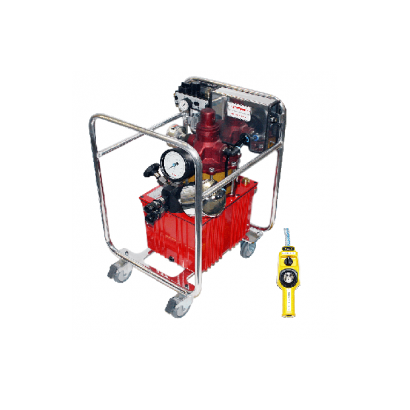

Advantages of the pneumatic pump


Ideal for on-site use: Fast handling with light weight and small dimensions for working pressures up to 3000 bar.
No electric power supply required: Any major air pressure system can be used.



Pressure build up: Various designs


Hydraulic pressure adjusting valve: This provides for smooth adjustment of the max hydraulic pressure and enables a faster pressure build up since it doesn't limit the air flow into the booster.
Without pressure adjusting valve: The hydraulic pressure output is controlled directly at the service unit (inlet pressure, primary side of the pressure cycle).



With pneumatic remote control: ITH Aero-MAX 179


Comfortable control of the hydraulic output pressure with a pneumatic remote
5-m hose for flexible and fast working. Pure pneumatic, no electric power supply required
Shut-off function for the hydraulic pressure open / closed at the remote control.

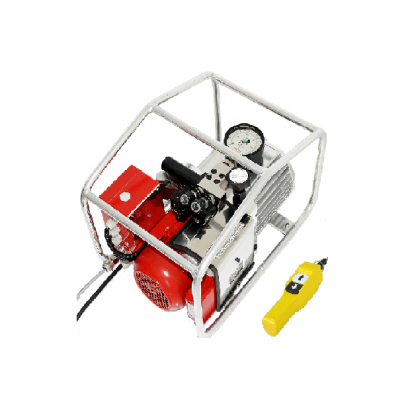

Advantages of the Eco-MAX series


Designed for standard applications, medium number of cycles
Suitable for on-site use: Weight optimized and compact with modular design
One part and wear-free rotor-eccentric shaft
Eco-MAX 18: Two hydraulic couplings provide the ability to use a number of bolt tensioning cylinders for the simultaneously pre tensioning of the bolt connections (ITH Multi-Tensioning)
Easy one-man operation, fast working process with the remote control



Performance data overview of the Eco-MAX series


Available pressure ratings (Max. working pressure): 1250 bar and 1500 bar
Voltage range 90 V - 480 V for 50 Hz and / or 60Hz (multi range motor)



Pressure build up: Options for Eco-MAX 18


Remote control standard (10m cord)
Option: Digital remote displaying pressures (10m cord)
Option: APC Automatic Pressure Control




Alternative pressure build up: Setup of the manual shut-off valve at the Hydraulic pump for Eco-MAX 17.

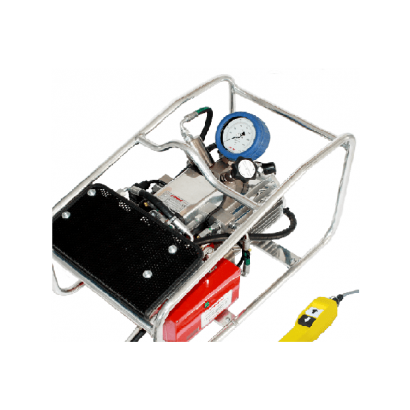

Advantages of the TH Micro-MAX series


Ideal for on-site use: The handling of the ITH Micro-MAX is as easy as a cable drum : It is can be used in places where the space is limited such as bolt connections on cranes and wind turbines (especially offshore).
Fast pressure build up guarantees fast assembly and service jobs.
Easy transport
NIOX-coating for all steel parts
Pump head made out of special tempering steel: especially long lifetime of the pressurized parts



Performance data overview of the Micro-MAX series


Available pressure rating (Max. working pressure): 1250 bar and 1500 bar
Frequency-independent motor: Voltages from 90 V - 110 V or 190V - 230V at 50 + 60 Hz offer the flexibility to operate worldwide.



Pressure build up Micro-MAX 70: Options


Remote control standard (10m cord)
Option: Digital remote displaying pressures (10m cord)



Micro-MAX 71 and 72: Manually setting of the hydraulic pressure with the pressure adjusting valve.
