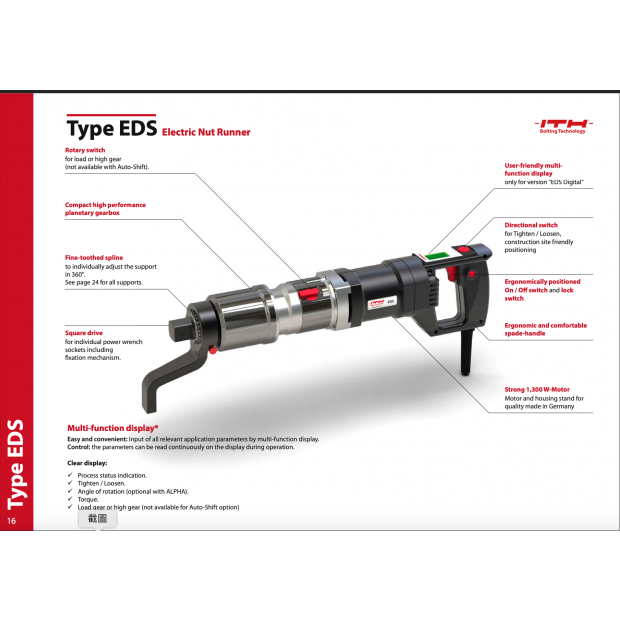

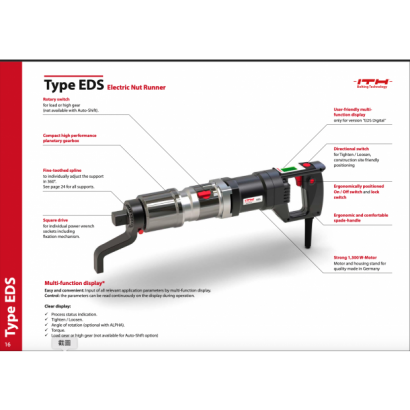

EDS電動型扭力扳手

1. Comprehensive control electronic:
   The EDS maintains continuous control of the tightening process and automatically adjusts the rotational speed according to the application.
2. Automatic free-run:
   Once the previously set torque value has been reached the EDS automatically initiates “free-run”, relieving torsional binding at the reaction point for easy and safe removal of the tool after each bolting process.
3. Suitable for on-site construction:
   The powerful motor is made to withstand the drastic voltage fluctuations common with using on-site generator power supplies.
4. Optimal for international machine outfits:
   Automatic detection and adjustment to 50 Hz or 60 Hz power supplies.
5. 2 gear stages:
   For changing between low and high gear.
6. Precision:
   High degree of reproducibility of thetorque values up to ± 3 %.
7. Independent rotation between handle and gearbox
   ensures steady and optimal positioning of the ITH EDS


Optional:

1. Rotation-angle controlled tightening
2. Digital, customized documentation system

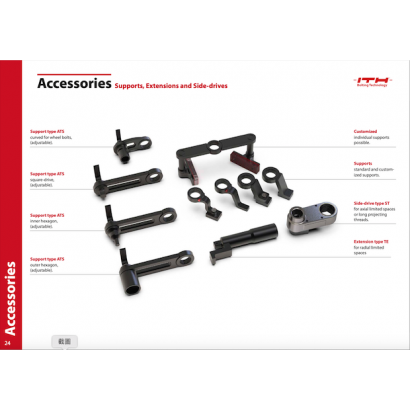

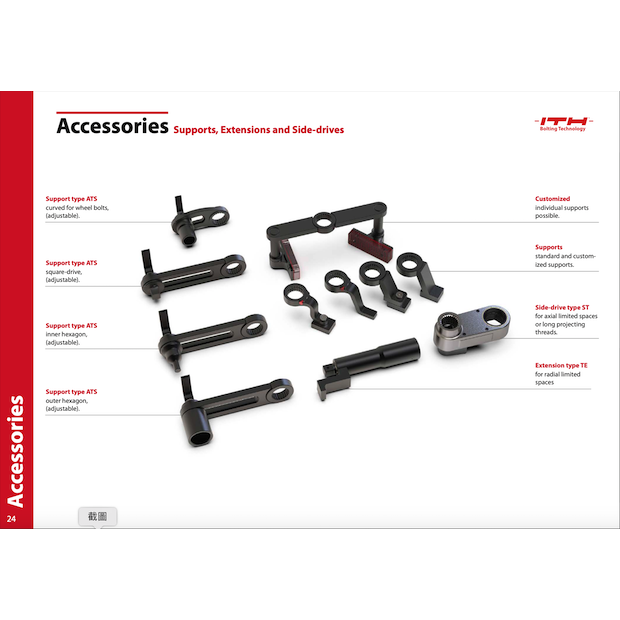

3. Comprehensive range of accessories

Special reaction arms, extensions, and side-drives, mobile test and calibration with our testing devices.
