FEATURES:
NIOX coating / Patented safety concept / Exchangable change bushing
Flexibility by modular design / Control notch / Patented cycle counter

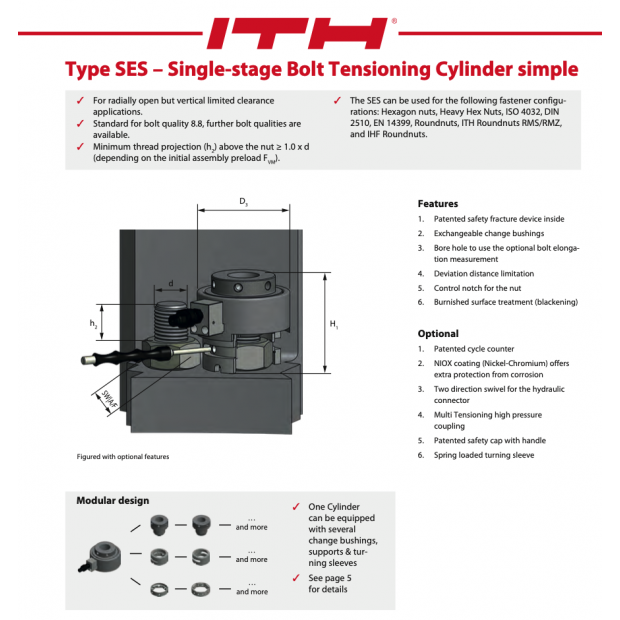

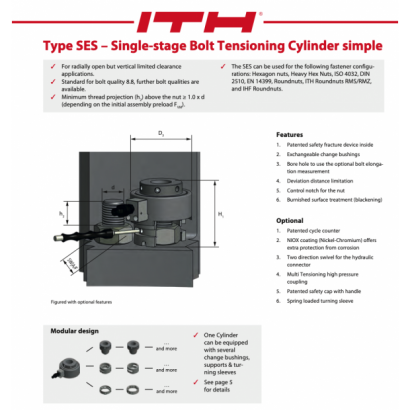

Type SES (single-stage simple): Short & wide design for radially open but limited vertical clearance applications
Standard scope
- design for bolt quality 8.8: M16 to M110
- special cylinders, customized designs for bolt qualities 5.6, 6.8 or 10.9 or further bolt qualities can be delivery on request.
Bolt Tensioning Cylinders can be used for the following fastener configurations:
Hexagon nuts
- ISO 4032: Hexagon nuts (former DIN 934)
- DIN 2510-5: Hexagon nuts
- EN 14399-4: High strength pre tension able bolt connections for the steel constructions (former DIN 6915)
- Heavy hex nuts
- Hexagon nuts according to customer designs
Round nuts:
- Round nuts with radial hole
- Round nut with center holes
- ITH Round nuts RMS /RMZ
- IHF Round nut
- Round nuts according to customer designs
