FEATURES:
NIOX coating / Patented safety concept / Patentierted cycle counter / Automatic piston return / Exchangable change bushing
Spring loaded turning sleeve & control notch / Optional measurement slot / Direct gear drive / Carrying strap and options / Hydraulic connection.

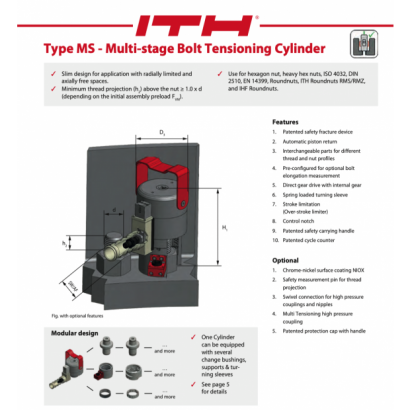

Design

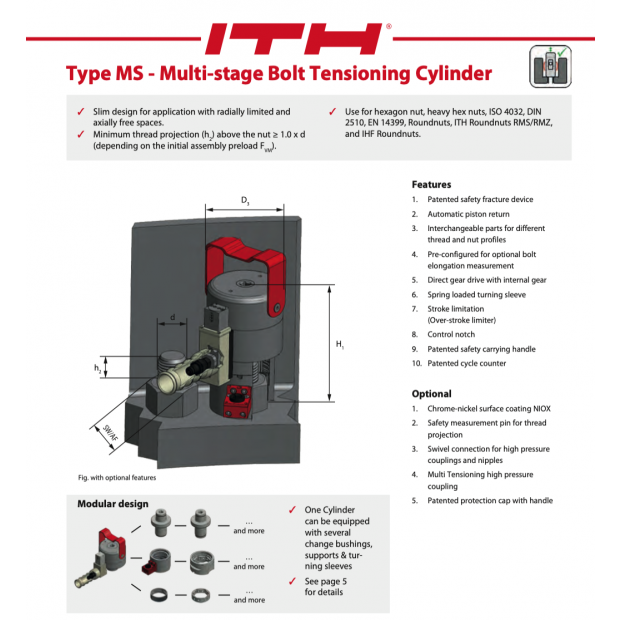

Type MS (Multi-stage): Tall & slim design for vertically open but limited radial clearance applications
Standard scope
- design for bolt quality 10.9: M 16 to M 110
- Please contact us for bolt qualities 5.6, 6.8, 8.8 or 12.9 or customer specific designs and dimensions.
Thread projection
The minimum required thread projection of the bolt above the nut: 1,0 x d of the bolt (depending on the preload force). If there is not enough thread projection ITH recommends the use of ITH tension nuts.
The BTC can be used for the following fastener configurations
Hexagon nuts
- ISO 4032: Hexagon nuts (former DIN 934)
- DIN 2510-5: Hexagon nuts
- EN 14399-4: High strength pre tension able bolt connections for the steel constructions (former DIN 6915)
- Heavy hex nuts
- Hexagon nuts according to customer designs
Round nuts:
- Round nuts with radial hole
- Round nut with center holes
- ITH Round nuts RMS /RMZ
- IHF Round nuts
