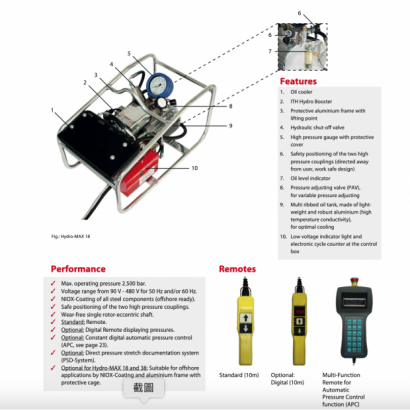

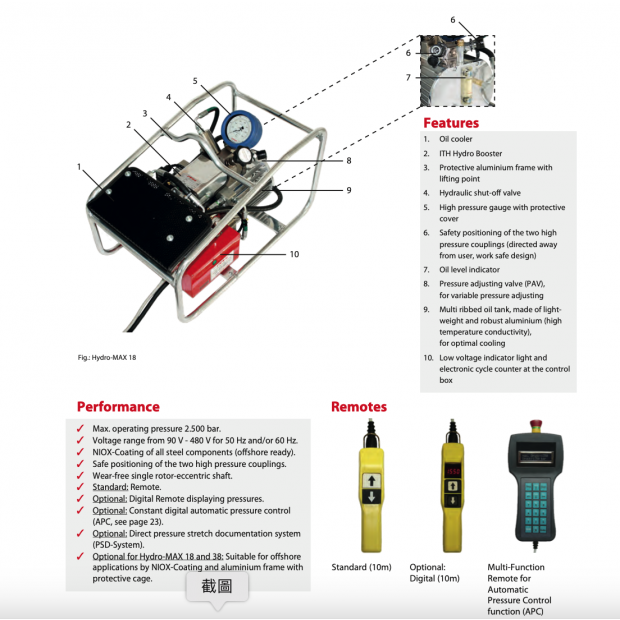

Advantages of the Hydro-MAX series
- One part and wear-free rotor eccentric shaft
- Fast pressure build-up with the Hydro-Booster technology
- NIOX surface coating of all steel parts (suitable for offshore usage such as wind turbines, cranes, ships, and other marine applications)
- Pump head made out of special tempering steel: especially long lifetime of the pressurized parts
- Safe position of the two high pressure couplings: Directed away from the user
- Simple one man operation, fast process with the remote control

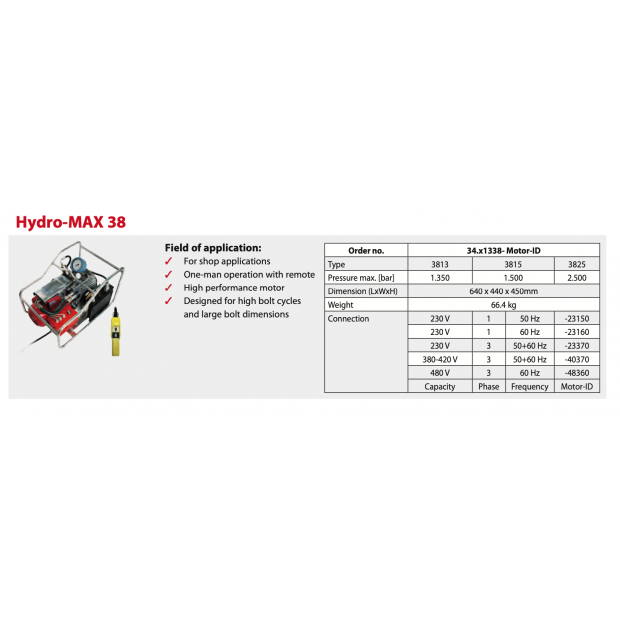

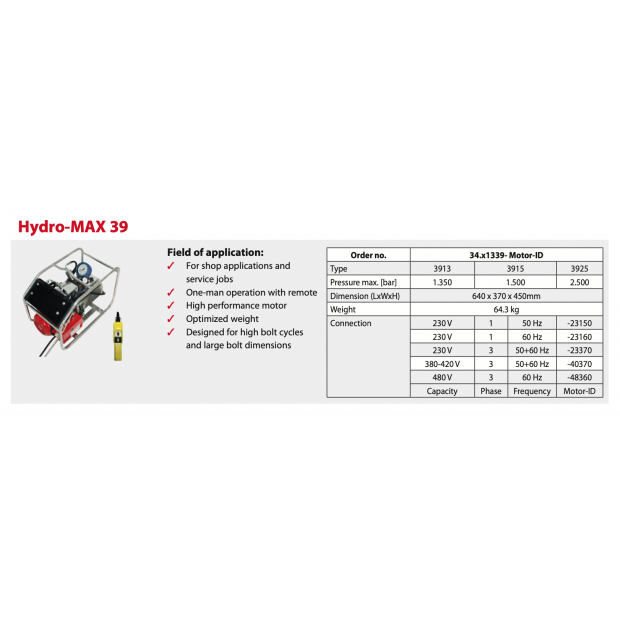

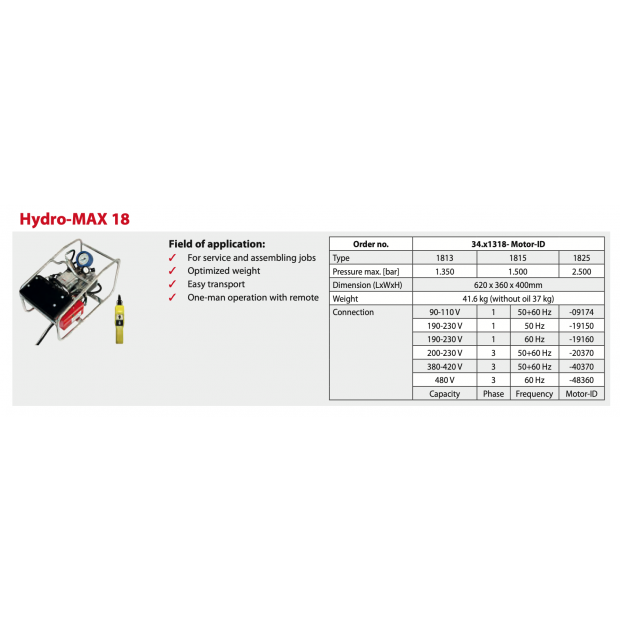

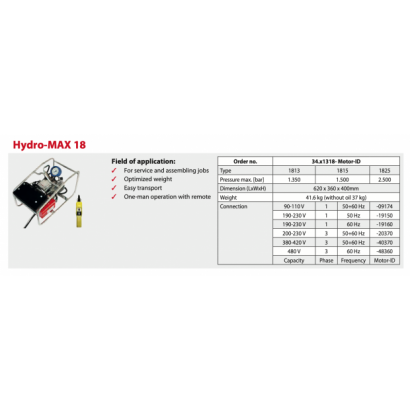

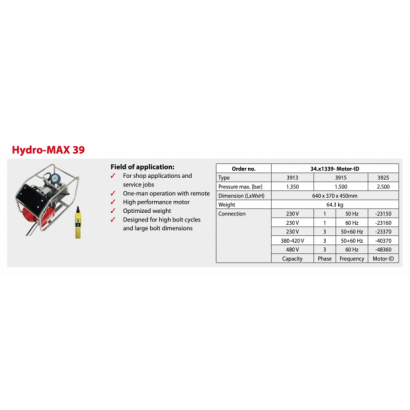

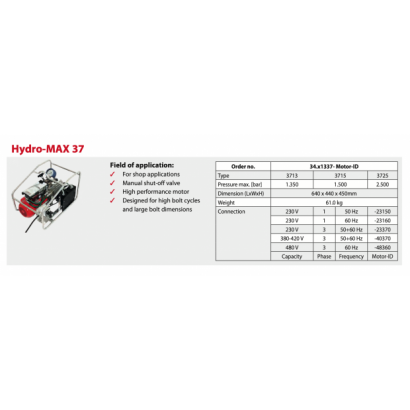

Performance data overview of the Hydro-MAX series
- Available pressure ratings (Max. working pressure): 1250 bar, 1500 bar, and 2500 bar
- Voltage range 90 V - 480 V for 50 Hz and / or 60Hz (multi range motor)
Pressure build up: Options
- Remote control standard (10m cord)
- Option: Digital remote displaying pressures (10m cord)
- Option: APC Automatic Pressure Control

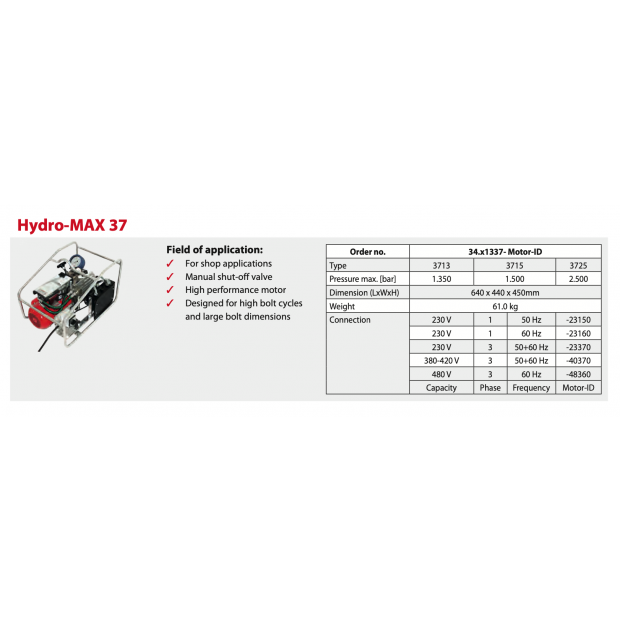

Alternative pressure build up: Setup of the manual shut-off valve at the Hydraulic pump.
